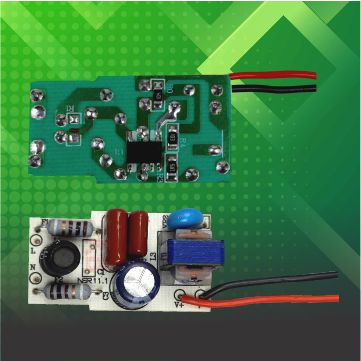

10W Tube Light Driver ( NSR 11 )
20W Tube Light Driver ( NSR 71.1 )
22W Tube Light Driver ( NSR 71.3 )
LED Tube Light Driver
Features:
- (1). Fold Back Technology.
- (2). Short Circuit and open circuit protection.
- (3). Quasi resonant mode ( QRM ) operation mode.
- (4). Good line and load regulation.
- (5). Internal line voltage compensation.
Product Description
LED Tubelight Driver | LED Tube Light Driver | LED T5 Driver | T5 Driver
Being a reliable name in the lighting industry, we A&A Enterprises offer a superior quality of T5 LED Driver to our clients. We manufacture and supply led Tubelight driver with low THD and high efficiency. The raw material is buy from trusted vendors. All the components are made up of high grade raw material. These led batten drivers conform to the norms defined by the market.
The products are available at market leading prices to the customers. The remarkable features of led drivers are low energy consumption, high durability and negligible maintenance etc. In order to attain maximum client satisfaction, we check the product quality on several counts at several stages. Our led driver is used for making 10W led tubelight,20W led tubelight and 22W led tubelight. Our led drivers are highly durable and have long service life.
| Product Generic Name | LED Tubelight Driver |
|---|---|
| Model No. | NSR 11 / NSR 71.1 / NSR 71.3 |
| Minimum Order Quantity | 100 Piece |
| Operating Input Voltage | 85V - 240V |
| Max.Input Voltage | 440V ( 380V Cut-off System ) |
| Power Factor | 0.9 |
| THD | <7% |
| Surge Protection | 4.5 KVA +_5% |
| AC Frequency | 50 HZ - 60 HZ |
| Driver Available | 10W / 20W / 22W |
| Output Voltage | 74V - 82V +_5% ( Vary acc.to Wattage ) |
| Output Current | 120mA - 230mA +_5% ( Vary acc.to Wattage ) |
| Power Efficiency | 85% |
| IC No. | MT9526SF / MT9513SF |
| 10W Driver Dimension ( L X W X T X Neck ) | 37 X 20.4 X 1.5 X 17.1 MM |
| Driver Dimension ( 20W-22W ) ( L X W X T ) | 54.7 X 16.7 X 1.5 MM |
| 10W Driver Capacitor / Transformer | 14.7 ( T ) MM |
| Driver Capacitor / Transformer( 20W-22W ) | 12.4 ( T ) MM |
| Integrated Circuit ( IC ) Make | Maxic 4th generation IC |
| MOV | 561K , 621K with high temperature |
| Fuse Resistance | 100 ohm |
| Output Wire | Silicon ( 125 0 ) |
| Input Wire | PVC ( 125 0 ) |
| Transformer | Indian Wire Cosmo |
