LED COB Light

LED COB Light

The advantages of Chip-on-Board LED arrays include:

  • (1). Compactness due to the small size of chip.
  • (2). High-Intensity, particularly at close distances.
  • (3). High-Uniformity, even at close working distances.
  • (4). Design Simplicity because only 1 circuit and 2 contacts are required.
  • (5). Superior Thermal Performance for increased life, stability and reliability.

Disadvantage:

Why COB LED Lights can't be used in color changing bulbs: ?

COB LED lights cannot be used to make color changing bulbs or lights. A couple of channels for modification are needed to make the color changing effect.



Enquire Now

Product Description

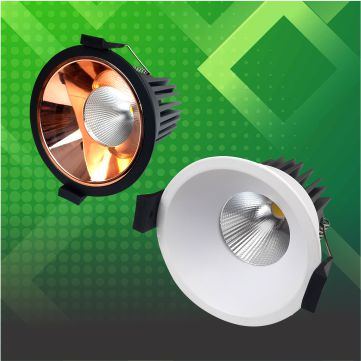

LED COB Light | LED Focus Light | LED COB Down Light

What is COB Light?

LED COB lights are new in LED marketplace compared to alternative items. COB LEDs are fundamentally multiple LED chips bundled together to shape a single lighting fixtures module. COB (Chips on board) has a capacity to growth the lighting fixtures space 10 times greater. The light is of warm white shading and its quality and sturdiness are unrivaled.

COB chips can create a massive quantity of lumens with less energy. You can discover it in all varieties of bulbs and applications, for example, the glimmer of your cell phone or point-and-shoot camera. Its variety is better with a minimum of 100 lumens for every watt.

COB chips just have just 1 circuit and a couple of contacts as well as 9 or greater diodes, no matter the wide variety of the diodes. This easy circuit design is the reason for the panel like appearance of COB LED light.

For instance,the usage of COB LED innovation on a 10mm x 10mm rectangular array results in 38 times more LEDs in comparison to DIP LED era and 8.5 times extra LEDs in comparison to SMD LED innovation.

Using COB LED innovation can significantly reduce the footprint and electricity consumption of the LED array whereas keeping lightweight output yield steady.

For instance, a 500 lumen COB LED cluster may be normally smaller and consume considerably less energy than a 500 lumen SMD or DIP LED cluster.

A&A Enterprises provides LED COB Light. Those are maximum energy saving COB lighting. We produce financially savvy LED COB Lights with have huge functions. LED COB Light is also known as COB Spot Light or Focus Light moreover.

We are the biggest manufacturer and supplier of a qualitative variety of LED COB Lights and their Raw Material. Our offered light is structured using splendid grade material and modern techniques under the direction of talented experts at our technically sound production unit. LED COB Light is broadly used for high brightening and concentrating on any item in addition to beautification purposes.

Applications:

Suitable for Indoor Lighting Purpose. These COB Lights or LED COB Spot Lights are mostly used for commercial, Industrial or residential purposes. These lights can be used in Hotels, Bars, Supermarket, Restaurant, Museum, Exhibition Hall, Household, Showrooms or any other project use.

Product Generic Name

LED COB Light

Minimum Order Quantity

50 Piece

Brand Name

Customized

Input Voltage 220V-240V AC
Surge Protection >2.5KVA
Lighting Color Cool White ( CW )
Luminous(Lighting) Efficiency >100lm/W
Power Consumption Wattage 7W / 12W / 18W
Input Frequency 50 HZ-60 HZ
Power Factor >0.90
Driver Power Efficiency >85%
Color Temperature 2700K-6500K
Install Type Down light
Shape Round
Life Hours 50000 Hrs
CRI >80
Usage/Application Office / Residential / Commercial lighting
Body Material Aluminium
  • Brighter
  • Consume less power
  • Higher quality beam of light
  • Durable and easy to use
  • ECO Friendly
  • Compact Design
  • Shock resistant feature
  • Long Lasting Features
