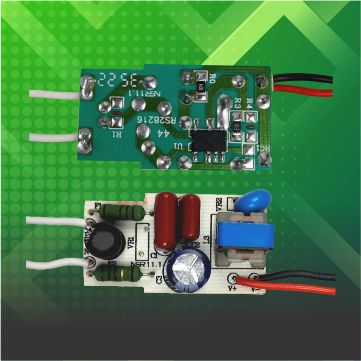

9W LED Bulb Driver With EMC ( NSR-11 )

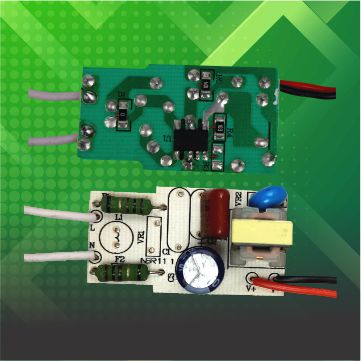

9W LED Bulb Driver W/O EMC ( NSR-11 )

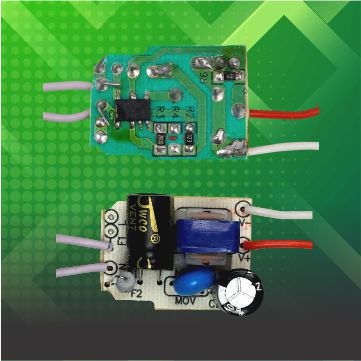

9W LED Bulb Driver With MOV ( NSR-21 )

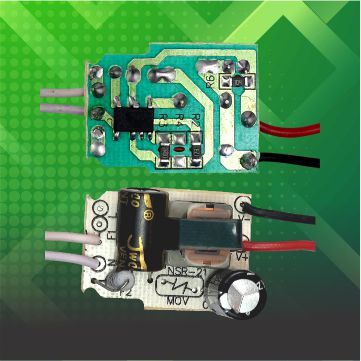

9W LED Bulb Driver W/O MOV ( NSR-21 )

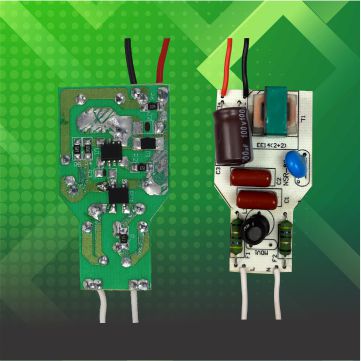

12W /15W LED Bulb Driver ( NSR-81.1 )
18W LED Bulb Driver ( NSR-81.3 )

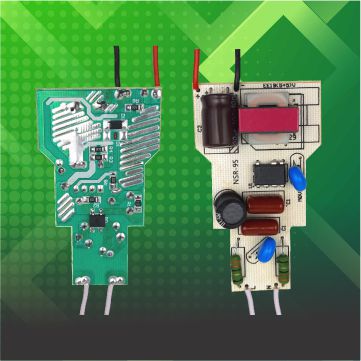

20W LED Bulb Driver ( NSR-95.1 )
LED Bulb Driver
Features:
- (1). Fold Back Technology.
- (2). Short Circuit and open circuit protection.
- (3). High accurate led current.
- (4). Quasi resonant mode ( QRM ) operation mode.
- (5). Various protections and self recovery.
- (6). Internal line voltage compensation.
- (7). Over current protection
Product Description
LED Bulb Driver | 9W LED Bulb Driver | LPF Bulb Driver | HPF Bulb Driver
A&A Enterprises is the manufacturer and supplier of a wide range of led lighting products which include 3w led driver, 5w led driver, led bulb driver, driver for led bulb, 7w led bulb drivers and 9w led bulb driver. Our led bulb drivers are effective products and useful in regulating power supply and providing uniform radiant output in electronic circuits.
These drivers are useful for protection against short circuit, overload and over voltage. We provide a high quality range led bulb driver of 3W to 20W to our valuable customers. The led bulb drivers are available in best quality both in HPF and LPF driver varieties. Our led driver is highly demanded because of its superior performance. These are extremely praised by our customers for their long lasting nature and high efficiency.
Moreover, this led bulb driver is available in industry at nominal cost. Due to their precise design and high functionality our offered materials are ideal for making wide variety of led bulb and led light. Additionally, we supply our objects in solid packaging at nominal rates.
These goods are manufactured with the highest safety standards and ensure a flicker free and noiseless performance of applications. Apart from this, the quality of led bulb driver is checked on various parameters to ensure that they meet the standards set by the industries.
These led drivers can used for making led bulb, led concealed light, led deep light, led panel light, downlight etc and many more lighting items also. We also deal in all types of led driver like led bulb driver, led tubelight driver, led concealed light driver, led panel light driver, street light and flood light driver etc.
Note : NSR -11 and NSR - 21 Model can be used for 3W to 9W with 9V 1W SMD Chip.
| Product Generic Name | LED Bulb Driver |
|---|---|
| Driver Model No: | NSR 11 / NSR 21 / NSR 81.1 / NSR 81.3 / NSR 95.1 |
| Minimum Order Quantity | 100 Piece |
| Driver Available | 3W - 9W / 12W - 15W / 20W |
| Operating Input Voltage | 85V-240V AC ( Vary acc.to Wattage ) |
| Max Input Voltage | 400V-440V ( Vary acc.to Wattage ) |
| Output Voltage | 54V DC- 88V DC ( +_3 to 5% ) ( Vary acc.to Wattage ) |
| Output Current | 100mA - 220mA +_5 ( Vary acc.to Wattage ) |
| Power Factor | 0.5-0.98 |
| THD | <7% - <10% |
| Surge Protection | ( 4KVA +_5% ) - ( 4.5KVA +_5% ) |
| Input Frequency | 50 HZ-60 HZ |
| IC No | MT9526SF / MT7772 / MT9513SF / MT9514SF / MT9514DF |
| Dimension Size ( Model : NSR 11 ) ( L X W X T X Neck ) | 37 X 20.4 X 1.5 X 17.1 MM |
| ( Model : NSR 11 ) Driver Capacitor / Transformer | 14.7 (T) MM |
| Dimension Size ( Model : NSR 21 ) ( L X W X T X Neck ) | 28.4 X 21.4 X 1.2 X 17.1 MM |
| ( Model : NSR 21 ) Driver Capacitor / Transformer | 14.0 (C) MM |
| Dimension Size ( Model : NSR 81.1 ) ( L X W X T X Neck ) | 50 X 27.5 X 1.5 X 17.4 MM |
| ( Model : NSR 81.1 ) Driver Capacitor / Transformer | 15.8 (T) MM |
| Dimension Size ( Model : NSR 81.3 ) ( L X W X T X Neck ) | 50 X 27.5 X 1.5 X 17.4 MM |
| ( Model : NSR 81.3 ) Driver Capacitor / Transformer | 16.6 (T) MM |
| Dimension Size ( Model : NSR 95.1 ) ( L X W X T X Neck ) | 63.5 X 38.5 X 1.5 X 17.9 MM |
| ( Model : NSR 95.1 ) Driver Capacitor / Transformer | 17 (T) MM |
| Transformer | Indian Wire Cosmo |
| Input Wire | PVC ( 125 0 ) |
| Output Wire | Silicon ( 125 0 ) |
