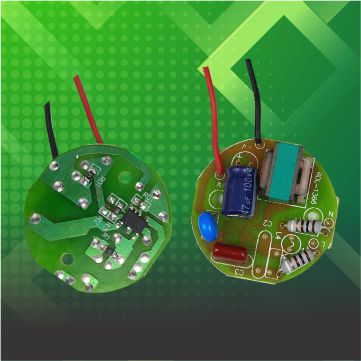

8W Panel Light Driver ( NSR 55 )

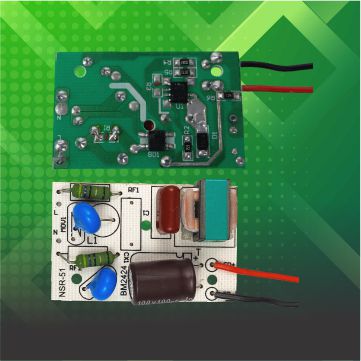

15W Panel Light Driver ( NSR 51.1 )

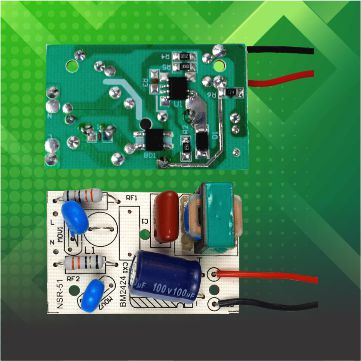

20W Panel Light Driver ( NSR 51.2 )
LED Panel Light Driver
Features:
- (1). Fold Back Technology.
- (2). Short Circuit and open circuit protection.
- (3). Quasi resonant mode ( QRM ) operation mode.
- (4). Good line and load regulation.
Product Description
LED Panel Light Driver | LED Surface Panel Light Driver
A&A Enterprises is the manufacturer and supplier of Panel light drivers used for making all types of Panel lights like LED Panel lights and LED Surface Panel lights. We also provide Syska type Panel light drivers in Delhi,India.
We offer you a complete choice of drivers which include LED Panel Light drivers and LED Surface Panel Light drivers of 8w, 15w and 20w for our clients.
| Product Generic Name | LED Surface Panel Light / LED Panel Light Driver |
|---|---|
| Driver Model No. | NSR 55 / NSR 51.1 / NSR 51.2 |
| Minimum Order Quantity | 100 Piece |
| Operating Input Voltage | 85V - 240V |
| Max.Input Voltage | 440V |
| Power Factor | 0.98 |
| THD | <7% |
| Surge Protection | 4KVA +_5% |
| AC Frequency | 50 HZ - 60 HZ |
| Driver Available | 8W / 15W / 20W |
| Output Voltage | 71V - 75V +_5% ( Vary acc.to Wattage ) |
| Output Current | 100mA - 220mA +_5% ( Vary acc.to Wattage ) |
| Power Efficiency | 90% |
| IC No. | MT9526SF / MT9513SF / MT9514SF |
| 8W Driver Diameter ( MM ) | 38 MM |
| 8W Driver Thickness ( MM ) | 1 MM |
| 8W Driver Capacitor / Transformer | 11.8 ( T ) MM |
| 15W Driver Dimension ( 15W-20W ) ( L X W X T ) | 45.2 X 28.4 X 1.5 MM |
| Driver Capacitor / Transformer( 15W-20W ) | 12.3 ( T ) MM |
